WRAITH FRAME

One piece of carbon, no joints, no slop. Stiffer than a multi-plate build, lighter too. Get it in the air and it flies like a toothpick: snappy, immediate, with a low-inertia feel that makes tight gaps feel easy. Small enough to rip urban environments, capable enough to run digital without compromise.

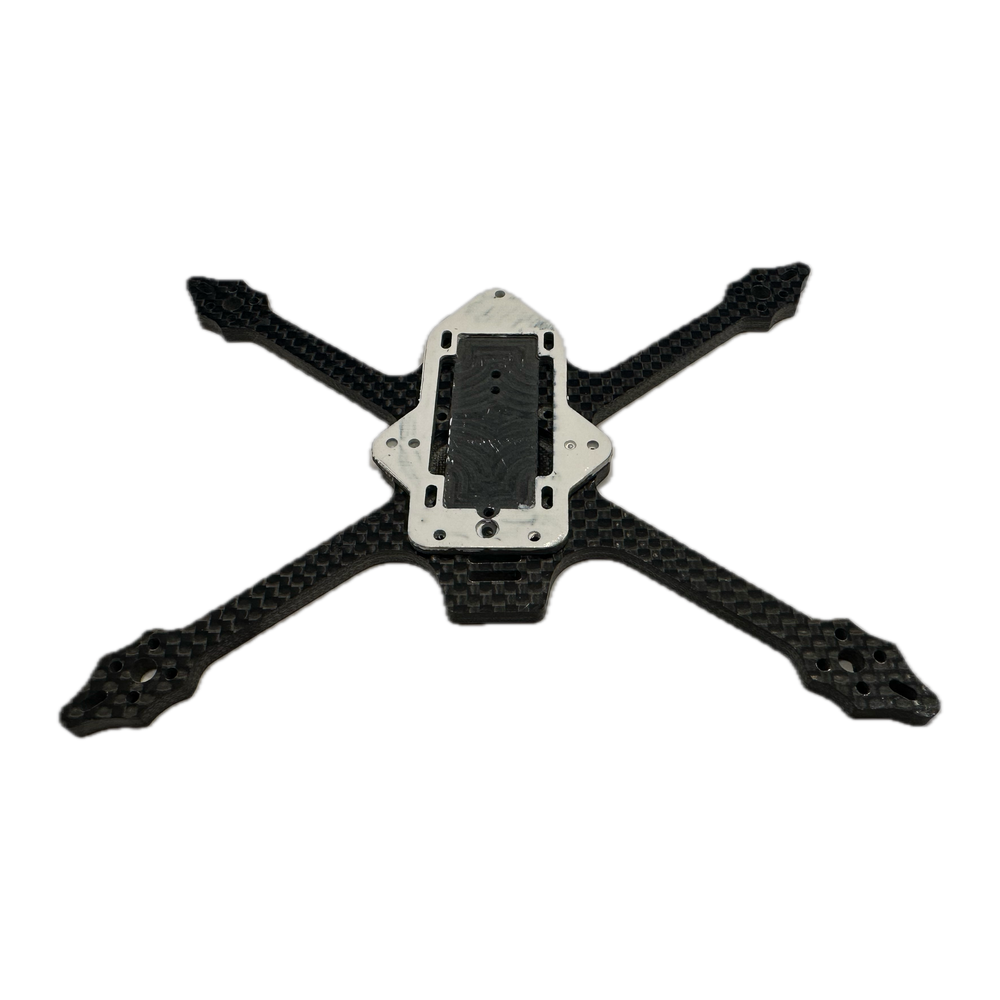

Wraith 3-inch unibody FPV frame

Specs

Wheelbase

137mm motor-to-motor

Configuration

True-X or Squashed-X

Prop Size

3″ / 76mm

Bottom Plate

4mm CF (Standard or Donut)

Top Plate

2.5mm CF (Diamond or Standard)

FC Mount

20×20mm or 25.5×25.5mm

VTX Mount

25×25mm (fits DJI O4 + 20×20 stacks)

Motor Mount

9×9mm M2, Ø2.20mm holes

Motor Class

1303 / 1304 / 1404 / 1207

Power System

2S / 3S / 4S LiPo

Video Systems

Digital / Analog

78g dry on a 1303 digital build. 9:1 thrust-to-weight on a 1304 at 4S. 14:1 on a 1207. At 137mm this thing has no business going this hard, and that's exactly the point.

Frame Features

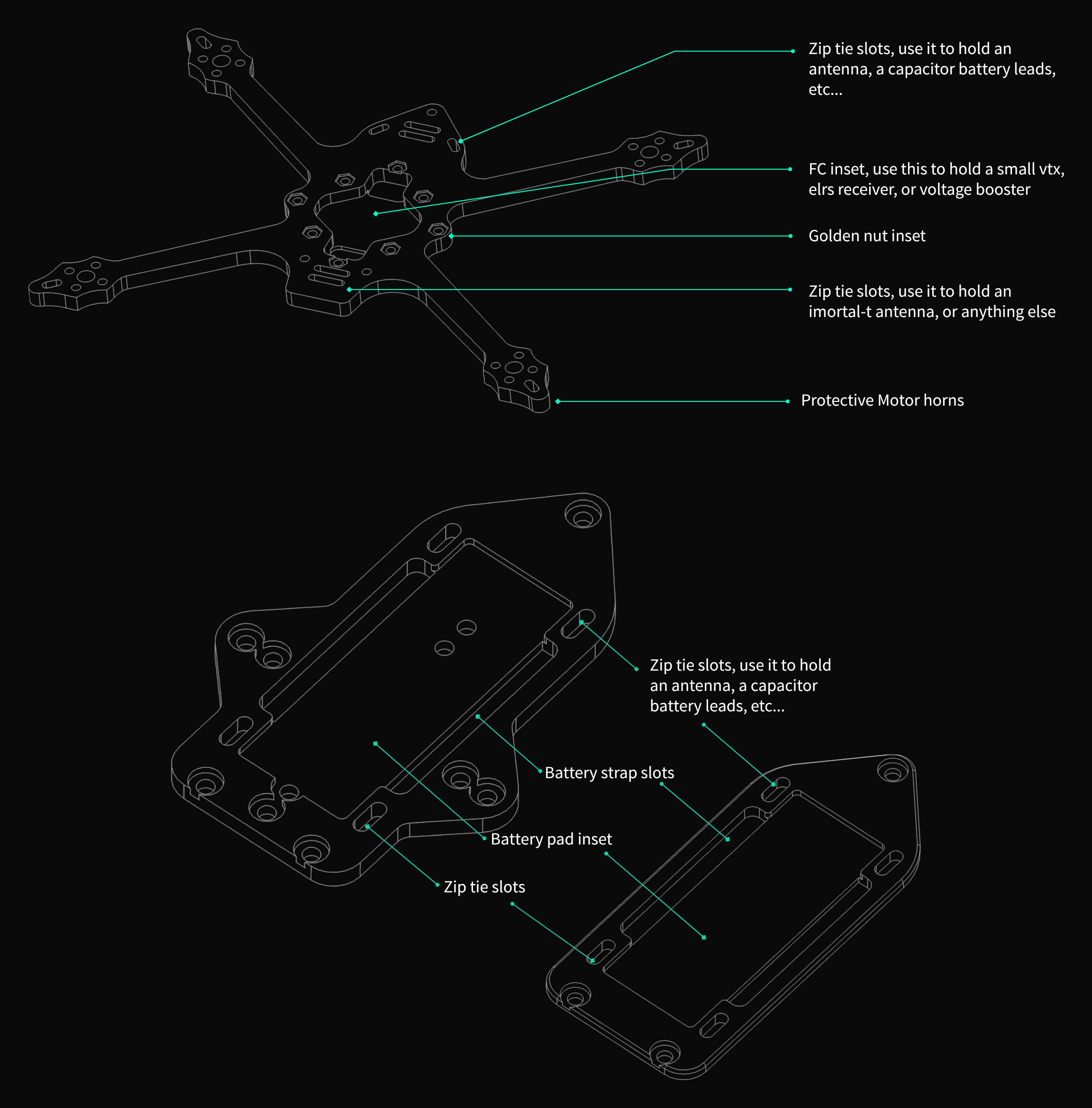

Wraith frame and top plate feature diagram — zip tie slots, FC inset for a small VTX/receiver/voltage booster, golden nut inset, protective motor horns, battery strap slots, and battery pad inset

What Makes It Different

Unibody construction

One plate, no joints, no slop. Stiffer than any multi-plate build. Honest tradeoff: if you break it, you replace the whole plate.

Two geometry variants

True-X for sharp, symmetrical response (Wraith X). Squashed-X for props pushed back and a more planted feel in forward flight (Wraith Squished). Same frame, different character.

Three TPU arm-protection styles

Boots slip over the arm tips, socks slip inside and stay keyed to the frame, and a claw variant adds grip and a more aggressive look. All free to print.

Golden nuts

Recessed notches cut into the carbon seat a nut flush against the plate. No screwing into raw carbon.

Recessed battery pad

The top plate has a built-in notch sized for a foam pad, so the battery sits lower, more centered, and doesn't shift on hard maneuvers.

25×25mm VTX mount

Fits the DJI O4 Air Unit and any 20×20 stack. Digital video is a first-class citizen here, not an afterthought.

Build Reference

Motors (9×9mm, 1.5mm shaft)

  • 1303 / 6000–8000KV, lightest, best for 2S.
  • 1304, the sweet spot for 4S, near 9:1 TWR.
  • 1207 / 5000KV, 4S only, ~14:1 TWR.

Props (3″ T-mount)

  • Gemfan 3016, the community standard tri-blade.
  • Gemfan 3020-3, more pitch, heavier builds or 4S.
  • Gemfan 3018, bi-blade, most efficient.

Batteries

  • 2S: 450–550mAh · BT3 connector.
  • 3S: 450–550mAh · XT30 on 3S/4S.
  • 4S: 450–600mAh depending on motor.

Full thrust-to-weight tables, flight-controller picks, and the complete build walkthrough are in the assembly guide below.

Buy

Wraith X

True-X geometry, sharp and symmetrical response.

  • 3K carbon, CNC-cut to order
  • Ships in 7 business days
$25
0

Wraith Squished

Squashed-X geometry, more planted in forward flight.

  • 3K carbon, CNC-cut to order
  • Ships in 7 business days
$25
0
30 In Stock

Full Kit

True X, professionally cut from T700. Hardware included.

  • T700 unibody carbon
  • Titanium hardware included
  • In stock, ships now, limited to 30
$55
0
0 items $0.00
Guide & TPU Files Assembly guide, canopy install guide, canopies & arm protection
